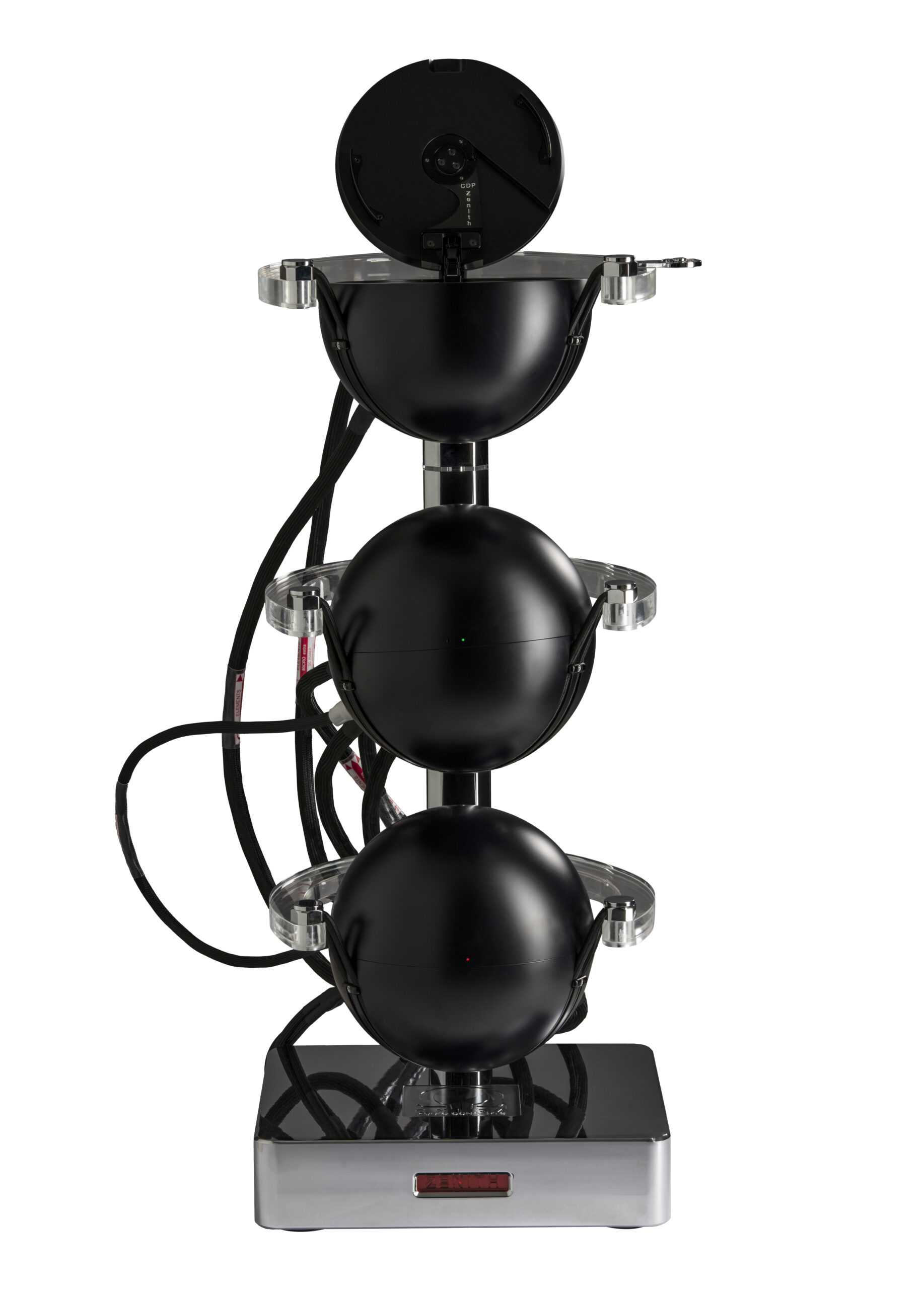

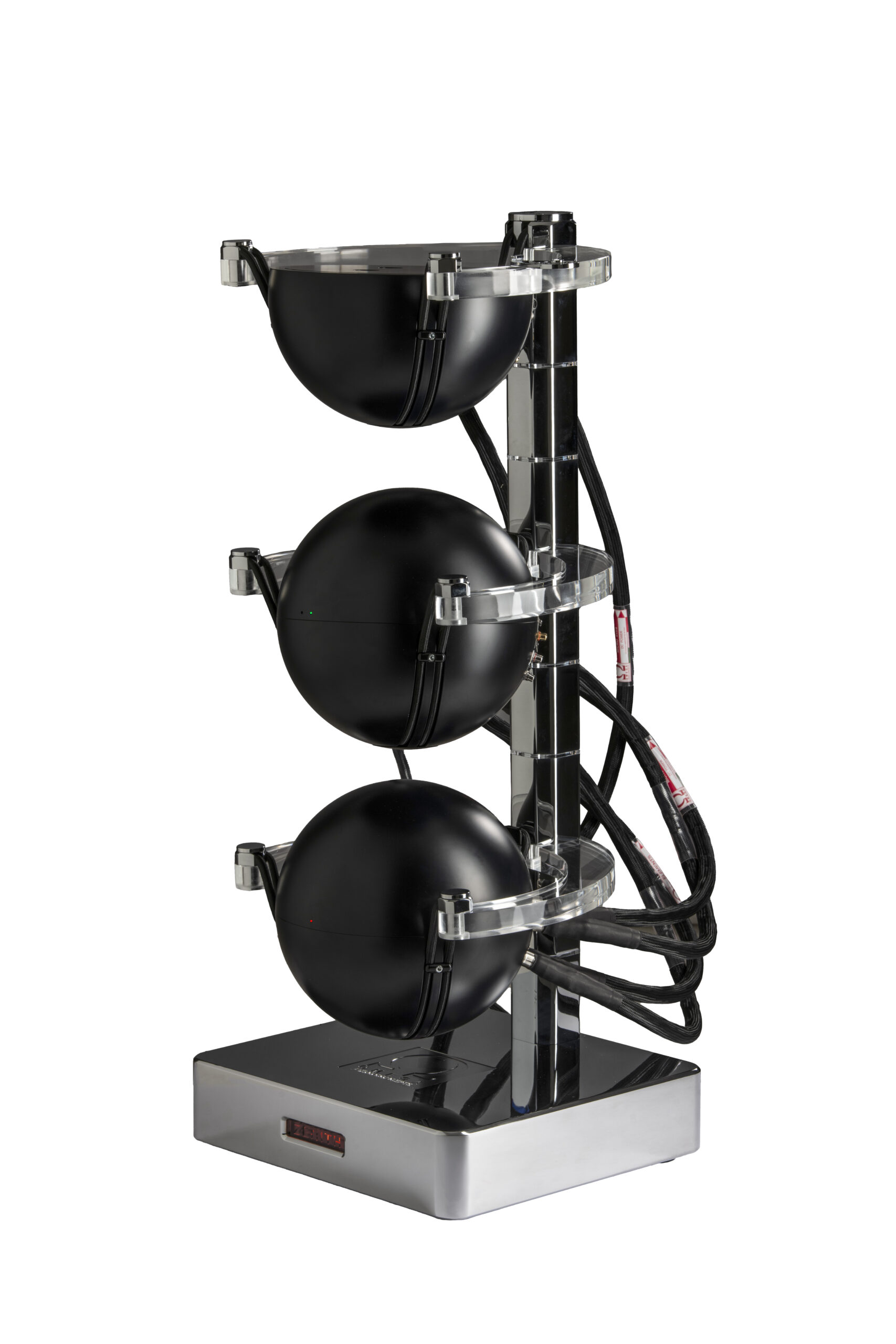

ZENITH CD Player

Zenith represents our current state of the art, the highest expression of our research in digital reproduction.
An absolute reference CD player, where every design choice serves a single purpose: to read and preserve the information on the disc with the highest possible fidelity.
It was created to take digital playback to its highest possible level. Zenith is the natural evolution of our STREAM CD player, refined, reimagined, and pushed further in every direction.
At its core is a completely decoupled architecture.

Inside, a fully decoupled architecture. Each component is developed to its theoretical limit, guided by a design choice that converges toward the perfect sphere, the ideal solid form. It is the most rigid structure, with the fewest modes of vibration according to physics.

The result is a pure spherical geometry, where function and form become reality.

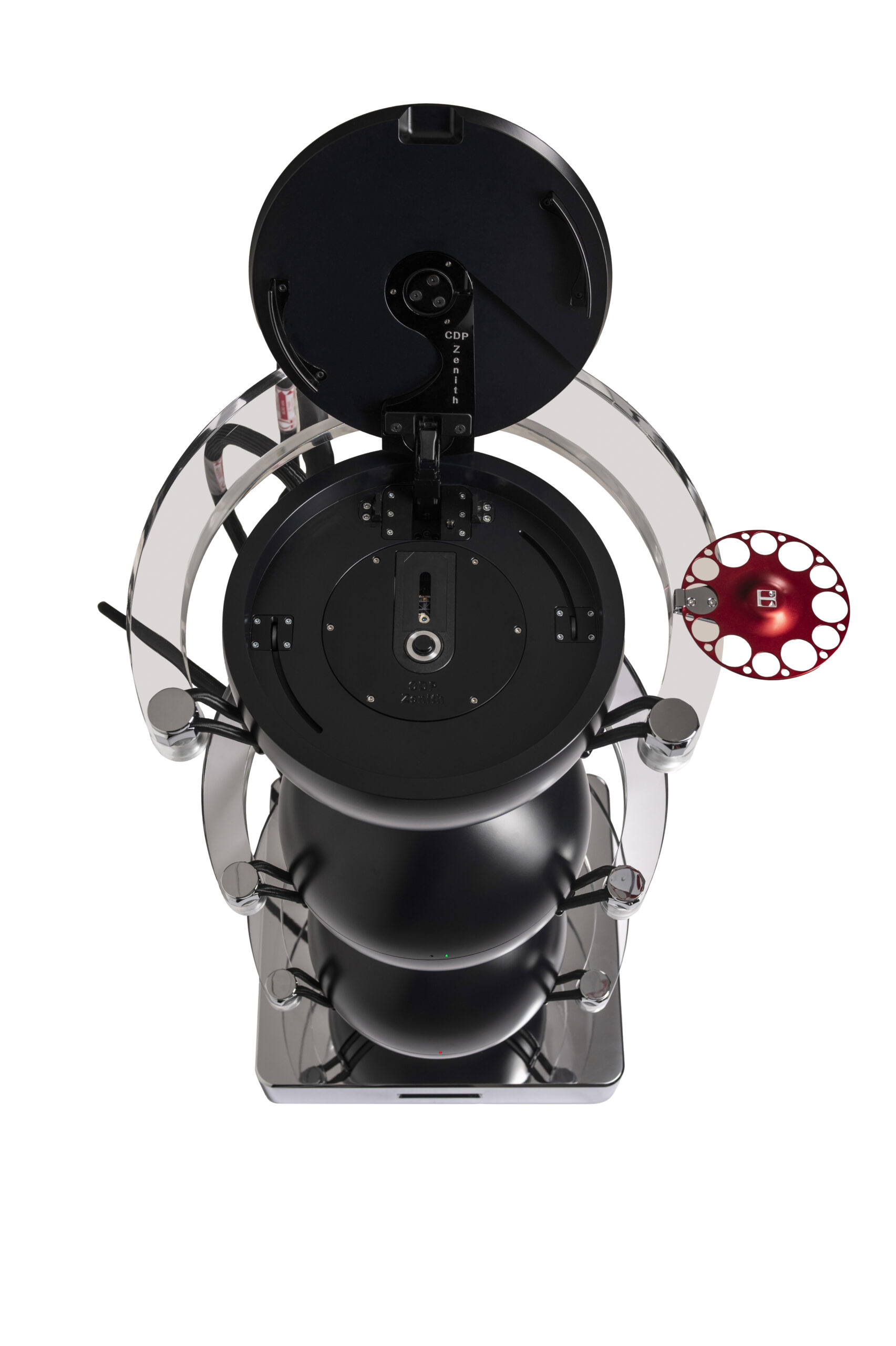

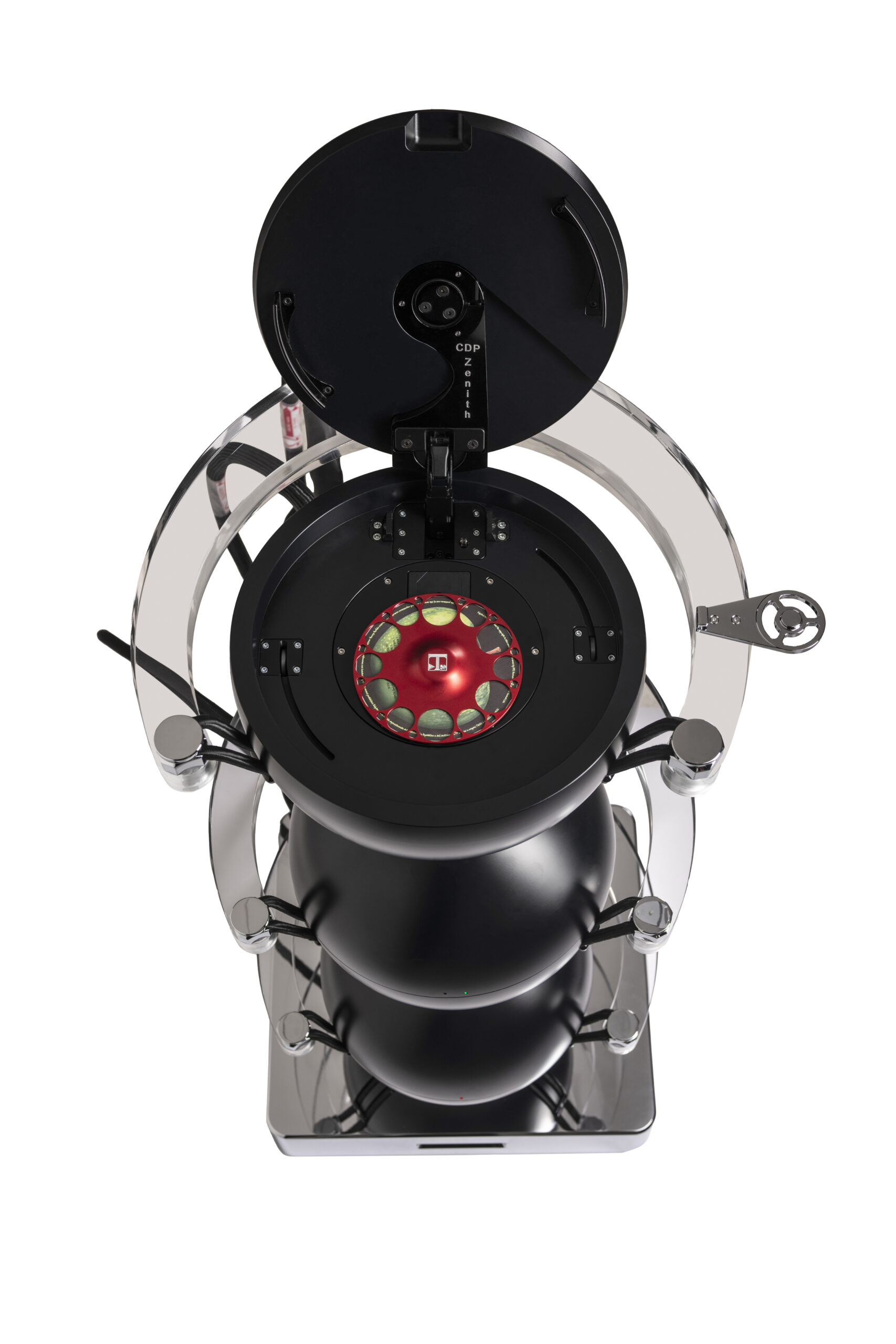

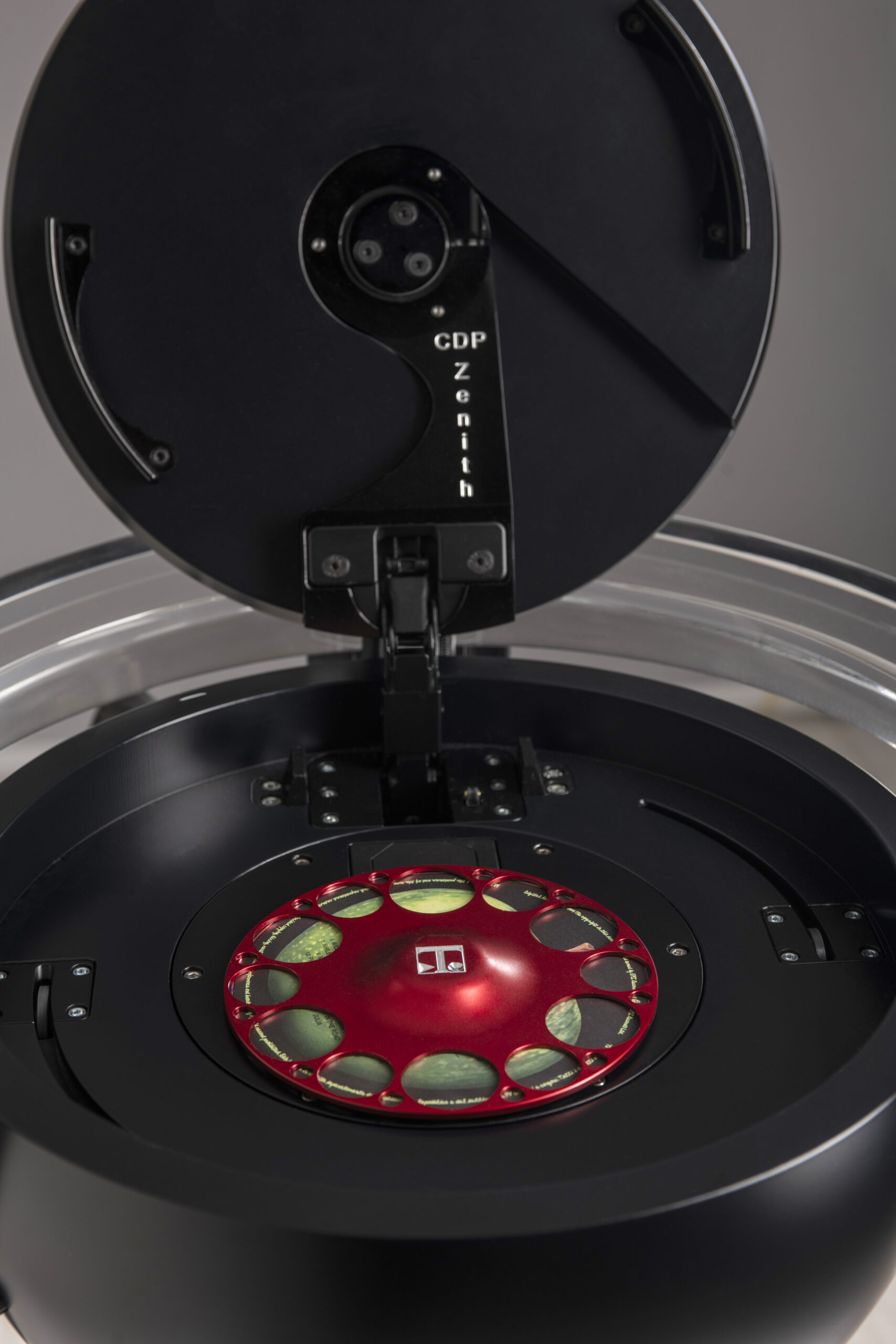

The original reading mechanism remains: an aluminum semi-sphere, elastically suspended. Around it, everything has been reengineered.

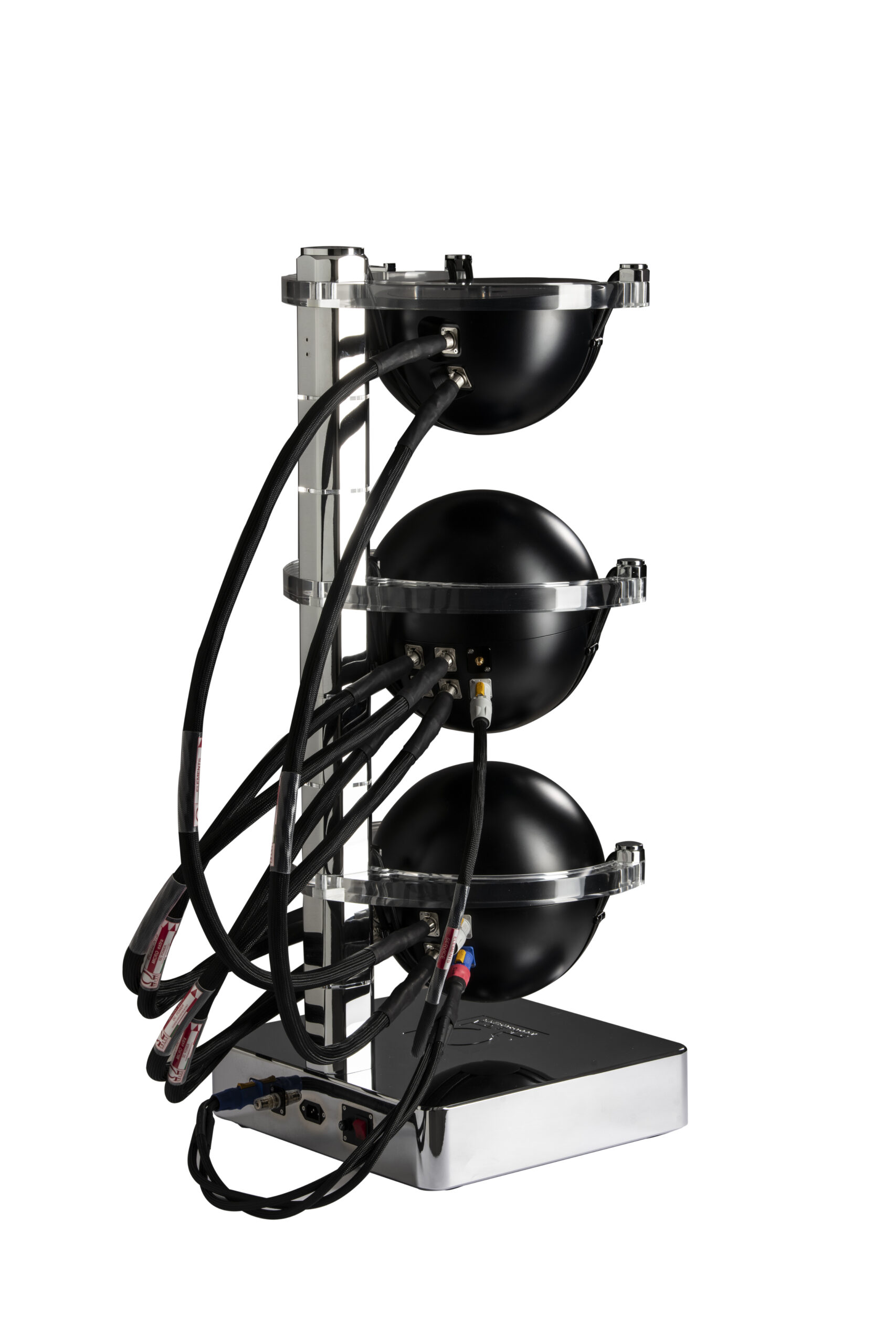

The power supply and DAC have been completely redesigned and are now housed in two separate spherical enclosures.
A new chassis ensures total isolation from mechanical and electromagnetic interference. Every internal component is placed within dedicated chambers, where it operates in an environment as controlled and pure as possible.
The result is absolute precision. A level of fidelity that brings listening closer than ever to the original recording.

Available in gray, black, and titanium finishes. Custom paint options are available upon request for those seeking something truly unique.

Request more information

Reading Mechanism Technical Specifications

  • Cabinet in aluminum machined from solid with CNC machines in hemispherical shape.
  • Internal and external connection system made with ELEMENTS patented cables of OMEGA AUDIO CONCEPTS of the MICRO extra series.
  • Three independent power supplies starting from the transformer, low noise with linear regulators for motor control, analog and digital circuits, control logic.
  • CD-PRO 2 LF PHILIPS reading mechanics with mechanical stiffening solutions, structure reinforcement, amagnetic aluminum clamp dug from solid, bottom unit of flat reading structure.
  • Digital output: S / PDF – coaxial.
  • Manage with an Android App installed in the tablet supplied.
  • Dimensions: 300 × 175 (D × H) hemispherical element.
  • Weight: 19 Kg.

DAC Technical Specifications

  • Spherical aluminum cabinet made from a solid one with numerical control machines.
  • Low-noise power supplies and six high-speed controllers for receiver, circuit conversion, analog output right channel, analog output left channel, TCXO and USB receiver.
  • Mass analog signal isolated from digital signal mass.
  • SMD components with a 0.1% tolerance for resistors and capacitors in the analog stage.
  • No series capacitors on the analog output stage.
  • Converter: Delta Sigma 24 Bit 192 KHz.
  • Digital inputs: S / PDF – coaxial 75 Ohm.
  • Wolfson S / PDF WM8805 receiver with TCXO reference clock.
  • XMOS SK1449 USB Receiver 24 Bit 192 KHz.
  • Maximum output level: 2.0 Vrms.
  • 120 dB signal / noise ratio.
  • Green front led indicator for S / PDF input, blue for USB input.
  • Size: 300 × 300 × 300 mm. (L × D × H).
  • Weight: 30 Kg.

Power Supply Technical Specifications

  • Seven 10 VA toroidal transformers.
  • Separate power supplies for motor control, for digital circuits, mechanical control logic.
  • Separate power supplies for digital and analog circuits and for interface circuits.
  • Stabilized power supply card for CDM2 PRO mechanics.
  • IEC compartment with fuse.
  • Maximum absorption 35 W.
  • Cabinet in spherical shaped aluminum machined from solid with numerical control machines.

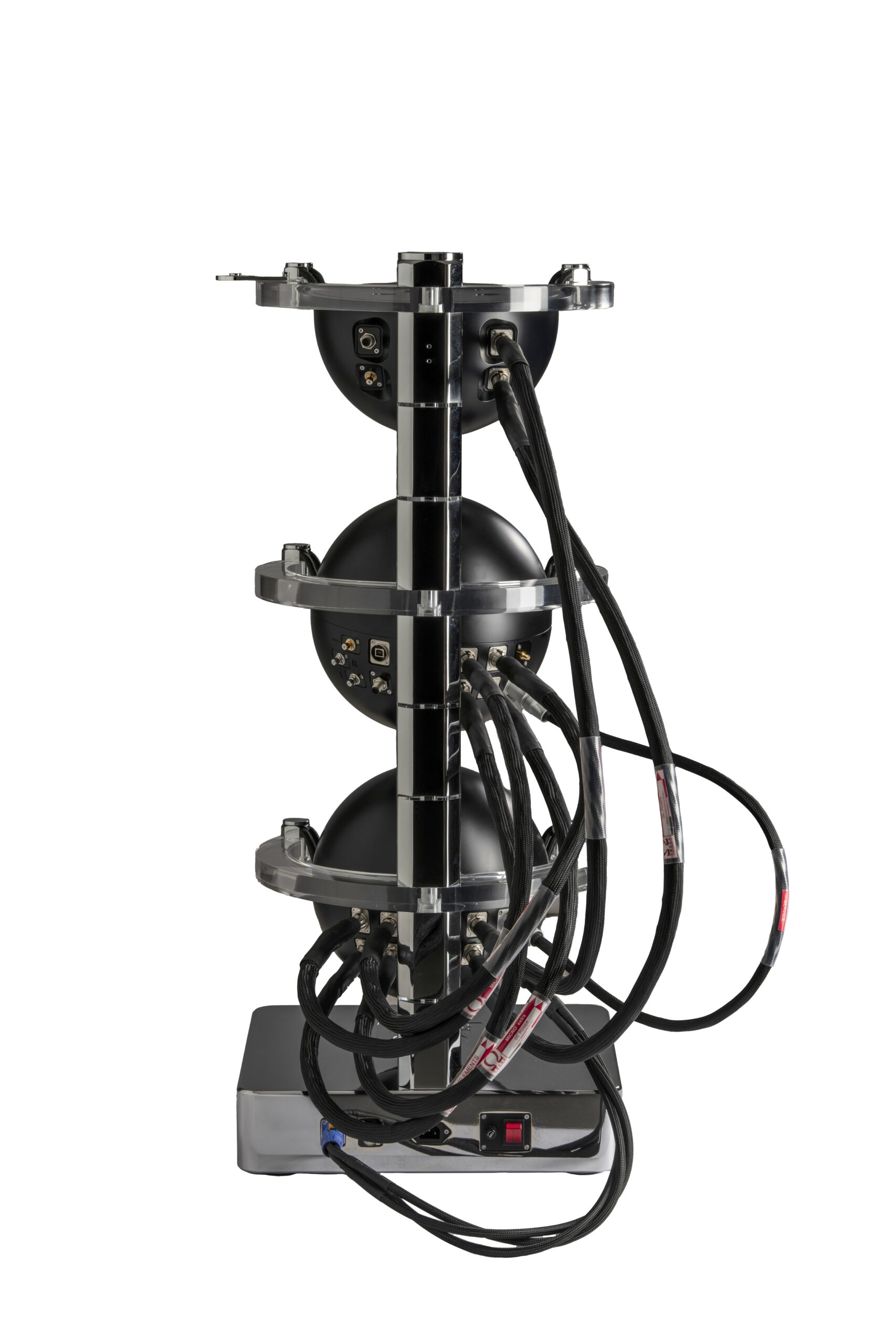

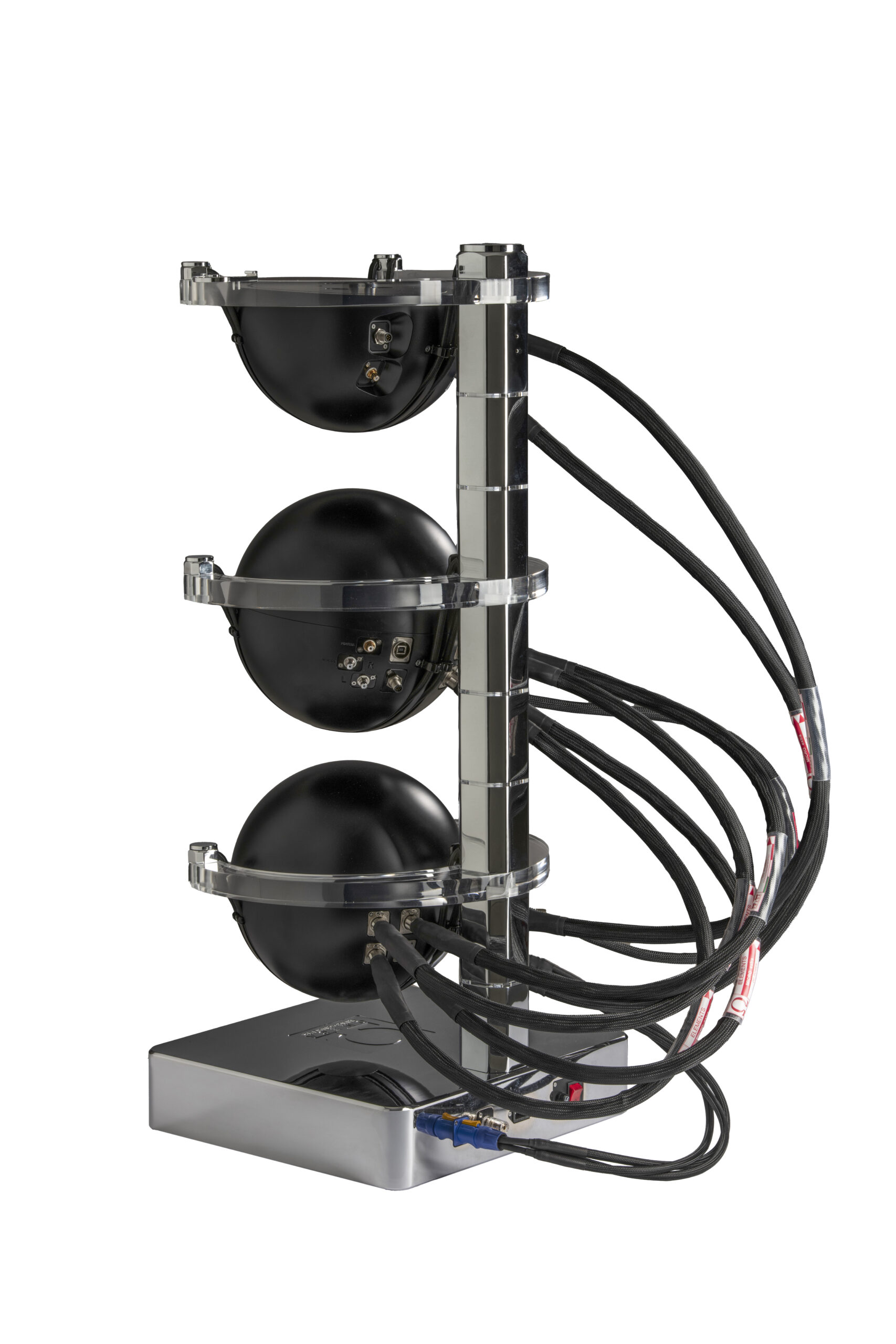

  • System of external connections made with ELEMENTS conductors of the MICRO extra series supplied with the ZENITH digital processing system.
  • Dimensions: 300 × 300 × 300 mm. (L × D × H).
  • Weight: 30 Kg.
  • Total weight system including supporting structure of the carrier for the sphere containing the reading mechanics: 150 Kg.
  • Total system encumbrance closed: 300 × 300 × 300 mm. (L × D × H).
  • Total space in the open system: 300 × 300 × 300 mm. (L × D × H).
